RS 4500 Series Mid-Heavy Duty Central Granulators

The Getecha RS 4500 Series granulators may be the most modern granulator available on the market. Having recently been redesigned, its popularity in the past year has been well beyond expectations.

Like other large granulators in designed and built by Getecha, the RS 4500 Series incorporates Getecha's highly regarded advanced cutting chamber technology. The result is a modern machine that operates more efficiently, at lower noise levels, with less energy consumption while producing better quality regrind for your re-use needs.

Advanced features of the RS 4500 Series include:

Segmented rotor designs Improved blade gap performance Longer blade life Lower cost of blades Safer blade changing procedures

Staggered rotor configurations

Improved energy efficiency

Allows for lower RPM while delivering higher cutting forces

Excellent regrind quality and consistency

Superb access to cutting chamber

Tool-free electro hydraulic controls of hopper and screen cradle for fast and full access to cutting chamber

Screen cradle rolls completely out from granulator base (no tools required)

Better quality regrind

Tangential feed design with scissors cutting action

Constant cutting circle throughout life of all blades

Lower RPM for reduced heat generation and better regrind quality

Common uses for the Getecha RS 4500 Series:

Beside-the-press very large part applications (injection molding, blow molding, extrusion) Central granulating room, off-line applications Batch feed granulating Extrusion application (sheet, profiles, edge trim) Blow molding applications with special rotor configurations Heavy duty parts granulating Purgings and lumps

Half open rotor ideal for blow molding, open slotted rotor provides for excellent airflow and cooling of hot moyles and tails. Compact, segmented four blade rotor for lumps, purgings and ultra-heavy-duty parts granulating.

Shown is a standard segmented (no stagger set on this unit) rotor of a RS 4506 with a 5-gallon pale. The aggressive infeed of the RS 4500 Series granulator allows for very effective grabbing and granulating of bulky items.

Design flexibility to meet many application needs:

Getecha's line of RS 4500 Series granulators serves many different application needs due to the flexibility of the build design. These granulators incorporate a modular design of various integral components that can be arranged on standard base designs to meet a variety of application demands, the modularized components include:

Hoppers

Cutting chambers

Rotors

Infeed systems

Evacuation systems

Technical information:

Watch video of access procedures of RS 4500 Granulator (13 MB, requires windows media player) To download, right click the link and choose "Save Target As...".

Drawing: RS 4500 Series with bypass hopper and rear plate chute (.pdf file)

Drawing: RS 4500 Series granulator standard layout drawing (.pdf file)

Drawing: RS 4500 Series granulator with infeed for flexible sheet (.pdf file)

Drawing: RS 4509 System Set-up Model

Drawing: RS 4515 Series Granulator for Thermoforming and sheet granulating

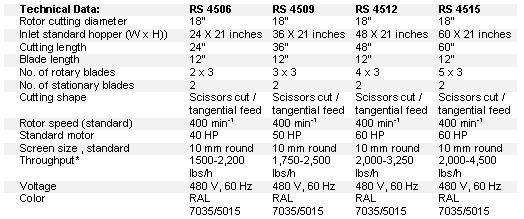

Technical data:
